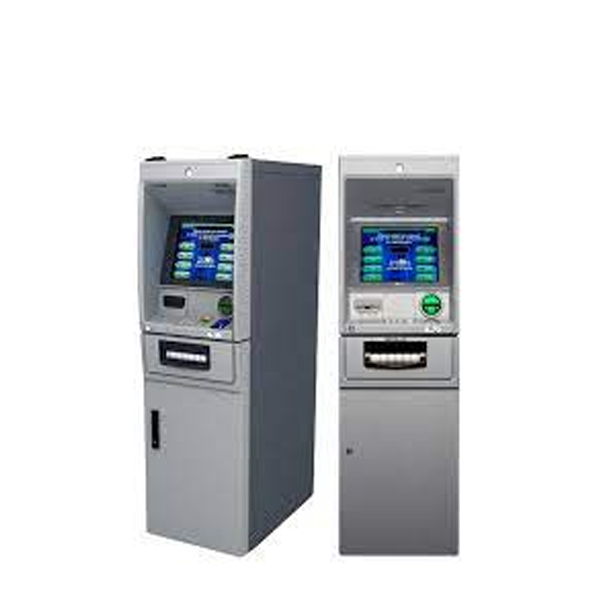

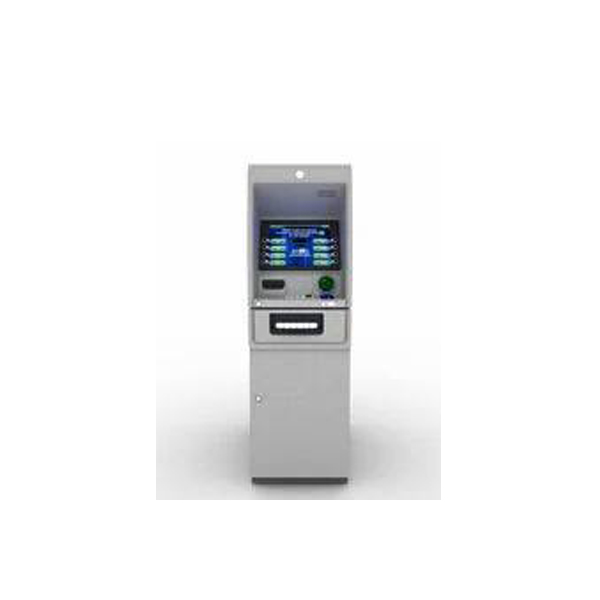

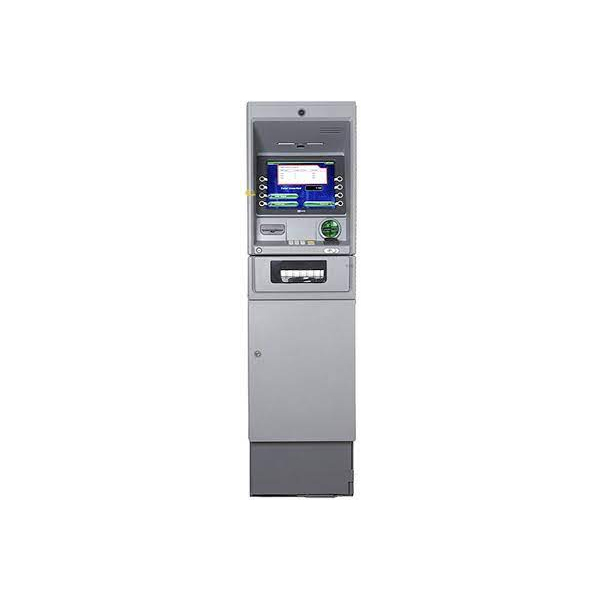

The NCR SelfServ™ 22 is a compact freestanding inside cash dispense ATM ideal for either bank branches or other inside locations. Capable of handling any volume of cash dispense transactions, the NCR SelfServ 22 also provides a broad range of other services such as bill payment, funds transfer, mobile phone top-up, couponing and vouchers and mini-statements. The NCR SelfServ 22 delivers unrivaled brand presence to set your self-service cash dispense network apart, while its ease of use, reliability and range of services will help strengthen consumer loyalty. Learn more about the new S2 Media Dispense Module available for this unit.
Features & Specifications
- Designed for intuitive ease of use and high levels of consumer attraction
- Able to project your brand image and deliver your self-service transactions in any inside location
- HEIGHT :
Front access 60.6” (1,538mm)
Rear access 59.3” (1,505mm) - WIDTH :19.2” (487mm)
- DEPTH :
Front access 34.0” (865mm)
Rear access 37.7” (957mm) - WEIGHT :
CEN 1 safe 1,118lbs (507kg)
CEN III safe 1,477lbs (670kg)
CEN IV safe 1,544lbs (700kg)
CEN III GAS EX safe 1,510lbs (685kg)
CEN IV GAS EX safe 1,609lbs (730kg) - CONSUMER INTERFACE :
Display - 15” LCD, FDK or touchscreen, optional privacy filter, sunlight readable displays
Keyboard - EPP (PCI compliant), polycarbonate or stainless steel
Card Reader - Smart Dip, IMCRW with Smart option, HiCo
Integrated Media Entry and Exit Indicators (MEEI)
Audio - Optional high quality public audio and/or sound jack with volume control
Barcode Reader - 2D Barcode supports both 1D and 2D documents - DISPENSER :
S2 Media Dispense Module. 2-4 cassettes, bunch presenter
Configurable purge bin capability with retract and single note divert
Anti-overfill cassette - PRINTERS :
Receipt Printer - 80mm 203dpi graphics thermal printer. Options - retract and capture, dual roll and/or 2ST (two-sided thermal printing)
Journal Printer - 80mm 203dpi graphics thermal printer (E-Journal available as default) - SECURITY :
NCR Secure™ is a complete portfolio of multi-layered solutions and services designed to provide protection against ATM attacks. Including a range of physical enclosures, recessed PIN Pad and Solidcore software security to protect your network. - ENVIRONMENTAL :
Temperature: 50°F to 104°F (10°C to 40°C)
Humidity: 20% to 80%
Acoustics: Sound power 65db (A) idle, 68db (A) operating - SERVICING :
LCD Operator Panel (rear load only)
Front, rear and side service - OPERATING PLATFORM :
A range of Intel® Processors
2GB or 4GB RAM
250GB hard drive
DVD-RW drive - SOFTWARE :
Windows® 7
NCR APTRA XFS
NCR APTRA software - ADDITIONAL FEATURES :
Biometrics ready
Contactless ready
