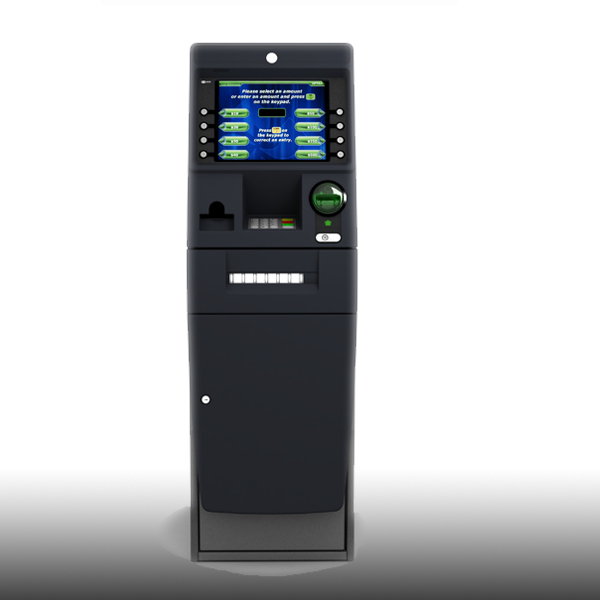

The NCR SelfServ™ 22e provides the perfect cash dispense solution for any inside ATM, whether in bank branches or in off-premise locations. Features intuitive design and a compact footprint, the SelfServ 22e is capable of handling the highest transaction volumes to deliver transactions to consumers where and when they need them. The SelfServ 22e’s high energy efficiency also drives down the total cost of ownership. This is achieved through less cabling, LED lighting and a 50% reduction in energy consumption thanks to unique processor architecture. The SelfServ 22e is one of the most energy efficient inside ATMs on the market.
Features & Specifications
- Unique security features, significantly reducing operational risk and increasing customer satisfaction
- The only ATM with protected USB architecture, a recessed PIN pad for additional PIN security and a dispenser fully enclosed within the safe
- HEIGHT :
Front access 60.6” (1,538mm)
Rear access 59.3” (1,505mm) - WIDTH :19.2” (487mm)
- DEPTH :
Front access 34.0” (865mm)
Rear access 37.7” (957mm) - WEIGHT :CEN 1 safe 1,118lbs (507kg)
- CONSUMER INTERFACE :
Display - 15” LCD, FDK or touchscreen, optional privacy filter, sunlight readable displays
Keyboard - EPP (PCI compliant), polycarbonate or stainless steel
Card Reader - Smart Dip, IMCRW with Smart option, HiCo
Integrated Media Entry and Exit Indicators (MEEI)
Audio - Optional high quality public audio and/or sound jack with volume control
Barcode Reader - 2D Barcode supports both 1D and 2D documents - DISPENSER :
S1 Dispenser: Please note SS22e only available with S1 configuration in South East Asia
S2 Media Dispense Module. 2-4 cassettes, bunch presenter
Configurable purge bin capability with retract and single note divert
Anti-overfill cassette - PRINTERS :
Receipt Printer - 80mm 203dpi graphics thermal printer.
Journal Printer - 80mm 203dpi graphics thermal printer (E-Journal available as default) - SECURITY :
NCR Secure™ is a complete portfolio of multi-layered solutions and services designed to provide protection against ATM attacks. Including a range of physical enclosures, recessed PIN Pad and Solidcore software security to protect your network. - ENVIRONMENTAL :
Temperature: 50°F to 104°F (10°C to 40°C)
Humidity: 20% to 80%
Acoustics: Sound power 65db (A) idle, 68db (A) operating - SERVICING :
LCD Operator Panel (rear load only)
Front, rear and side service - OPERATING PLATFORM :
A range of Intel® Processors
2GB or 4GB RAM
250GB hard drive
DVD-RW drive - SOFTWARE :
Windows® 7
NCR APTRA XFS
NCR APTRA software - ADDITIONAL FEATURES :
Biometrics ready
Contactless ready
