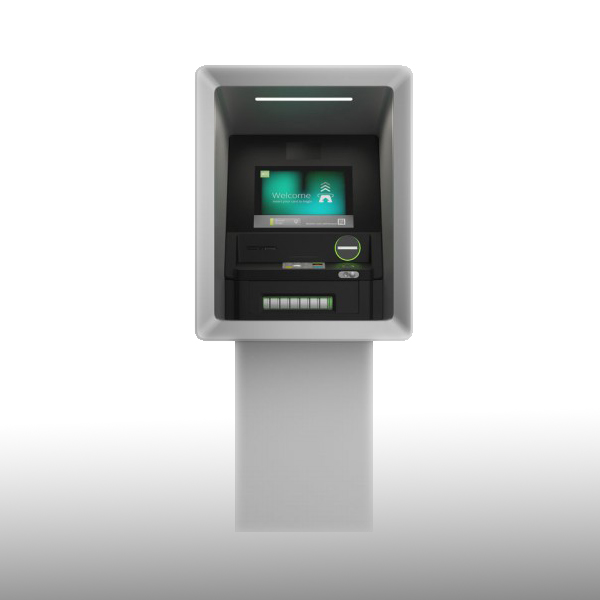

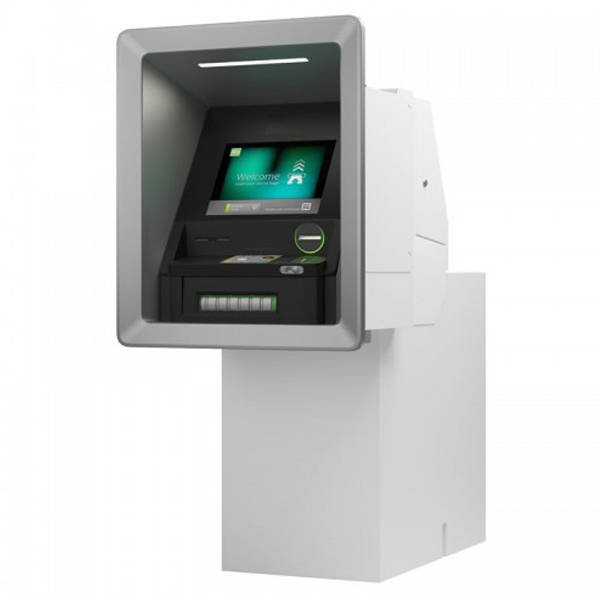

The SelfServ 27 is a new premium exterior through the wall ATM from NCR, featuring a modern aesthetic, enabling the latest touch, swipe and gesture capability. Designed for ease-of-use and delivering an exceptional consumer experience, the SelfServ 27 is capable of handling the highest possible transaction volumes. The SelfServ 27 drives six key business benefits for ATM deployers by improving: – availability, usability, performance, service, security and design. Learn more about the new S2 Media Dispense Module available for this unit.
Features & Specifications
- 15” LCD multi-touch screen or FDK
- S2 Media Dispense Module
- Up to 60 note bunch capacity
- Anti-overfill cassettes
- NCR Skimming Protection Solution
- Integrated Contactless Card Reader
- REAR ACCESS
- HEIGHT :57.60” (1,463mm)
- WIDTH :25.87” (657mm)
- DEPTH :48.11” (1,222mm)
- WEIGHT :
CEN 1 safe 1,047.2 lbs (475kg)
CEN IV safe 1,433 lbs (650kg) - CONSUMER INTERFACE :
Display - 15” LCD multi-touch enabled, or with FDK, optional privacy filter
Keyboard - EPP (PCI compliant), polycarbonate or stainless steel
Card Reader - Smart Dip, 2 or 3 track IMCRW with Card Return on Power Failure (CROPF) and smart
Integrated Media Entry and Exit Indicators (MEEI)
Audio - Optional high quality public audio and/or sound jack with volume control
Barcode Reader - 2D Barcode supports both 1D and 2D documents - DISPENSER :
S2 Media Dispense Module. 2-4 cassettes, bunch presenter
Configurable purge bin capability with retract and single note divert
Anti-overfill cassette - PRINTERS :
Receipt Printer - 80mm 203dpi graphics thermal printer. Options - retract and capture, 2ST (two-sided thermal printing)
Journal Printer - 80mm 203dpi graphics thermal printer (E-Journal available as default) - SECURITY :
USB Protection and Parts Validation. Options - Fraudulent Device Inhibitor, Enhanced Card Drive, Skimming Protection Solution (SPS) (IMCRW only), Ink-staining, Solidcore Suite for APTRA, Camera NTSC, PAL or third party, cash slot and portrait camera enabled
Uninterruptible Power Supply (UPS)
Safes - CEN 1, CEN IV - SERVICING :
Rear access
7” LCD Control Operator Panel (Rear access only) - OPERATING PLATFORM :
Intel® Celeron, i3 and i5 processor options
2GB or 4GB RAM
250GB hard drive
DVD-RW drive - SOFTWARE :
Windows® 7
APTRA software suite
