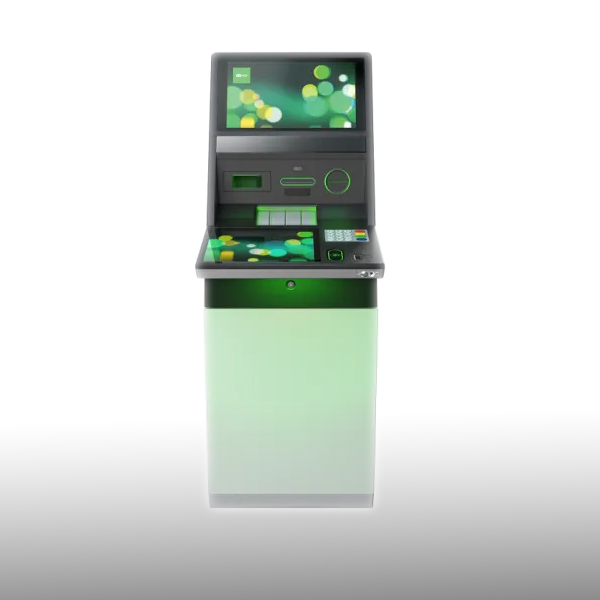

The NCR SelfServ 62 has been designed to enhance the consumer experience, reduce costs and generate revenue. Digitally-inspired design taking your brand to the next level whilst adhering to the global accessibility standards. Powered by the new enhanced Scalable Recycler, NCR SelfServ 62 is the device perfect solution to future-proof your ATM network.
Experience - for your customers and staff. Mobile interactions at the forefront coupled with Software-driven performance and greater sense of consumer privacy.
Efficiency- Helping Financial Institutions lower their total cost of ownership and meet wider corporate social responsibility objectives whilst delivering service excellence though wide range of software tools.
Agility- Versatile device configurations. Dynamic software-driven capabilities, split cassette option, interchangeable interfaces and modular ATM design for best results and performance.
Features & Specifications
- Designed for digital future - New accessible design for ease of integration of mobile-first technologies. Upper display panel for tailored, creative and dynamic ways to connect with your customers
- Versatile device configurations – Scalable Recycler (SR) is a configurable device allowing you to choose the right configuration to the right location.
- Ease of service - Simplified parts for enhanced first line maintenance and increased number of field replaceable units for quick repairs
- Enhanced security features – security by design with hardware and software improvements to ensure the highest standard of protection against attacks
- FRONT ACCESS
- HEIGHT :56.37” (1,432mm)
- WIDTH :20.47” (520mm)
- DEPTH :36.61” (930mm)
- WEIGHT CEN I safe :1,322.8lbs (600kg)
- CONSUMER INTERFACE :
Display – 15” LCD multi-touch, optional privacy filter
Dynamic Colored MEEIs
Dynamic Mood Lighting (optional)
Keyboard – EPP (PCI compliant)
Pin Shield (optional)
Tamper Resistant Card Readers – Smart Dip, MRCW
Contactless – Integrated Reader (via card, smartphone or smartwatch)
Biometrics – fingerprint reader (optional)
Audio – Optional high-quality public audioand/or sound jack with volume control
Barcode Reader (optional)
- Media Handling 3.0 technology :
Cash Recycling: Scalable Recycler 3.0
Scalable from 3 to 6 cassettes (full & split)
- Up to 8 denominations recycling
- Up to 300 notes** bunch size
- Cassette Capacities
- Recycling Cassette capacity: up to 3000 notes*, 332mm
- Deposit Cassette capacity: up to 3300 notes*, 363mm
- Split Cassette capacity: up to 700 notes* , 77mm + 1300 notes*, 143mm
- Exception bin for unfit, suspect & counterfeit notes (75mm + 55mm + 10mm)
- Foreign object management
- Secure transport
• Check deposit: Scalable Check Processing Module 2.0 (optional)***
- 5 bunch up to 400** items
- Endorse and return
- RGB, Infrared and Ultraviolet recognition
- Upgraded FPGA chipset
• Coin dispense: SmartHopper Coin Module (optional)***
- Up to 11 coin denominations
- Storage capacity (standard): up to 11.3kg (24.9 lbs)
- PRINTERS :
Graphic Thermal Printer
Journal Printer (optional) - SECURITY :
USB Protection and Parts Validation
Portrait Camera
Cash Camera (optional)
Consumer Mirrors (optional)
NCR ATM Endpoint Security Solutions (optional)
Skimming Protection Solution (SPS) (optional)
Range of Alarms (optional)
UL437 cabinet locks
Safes: CEN I, CEN III GasEx, CEN IV GasEx - ENVIRONMENT :
Standard 50°F to 104°F (10°C to 40°C)
• Humidity – 20% to 80%
• Severe (option) 32°F to 104°F (0°C to 40°C)
- SERVICING :
Front/Rear access
• Self Service Assistant (SSA) - OPERATING PLATFORM :
Intel® Core - i3, i5 or i7
• 8GB, 16GB, 32GB, 64GB RAM
• 240GB or 480GB SSD Hard Drive (with 2nd SSD)
- SOFTWARE :
Windows® 10 ready
• NCR Software Suite
- ADDITIONAL FEATURES :
Uninterrupted Power Supply
• Bluetooth
• Dual Wireless
